i.MX6 UltraLite Evaluation Kit

tx-reverse-160pxi.MX6 UltraLite Evaluation Kit with TRITON-TX6UL

Low-cost baseboard with Wi-Fi, Dual Ethernet, up to 8 UARTs

This new, tiny Mainboard family baseboard offers some interesting features, including up to 8 UARTs (3x RS-232 and 2x RS-485), dual Ethernet and Wi-Fi, and is supplied complete with a TRITON-TX6UL i.MX6 UltraLite module with 256Mb RAM and 4GB eMMC.

Operating from a 5V supply and measuring just 100mm x 45mm, the new Evaluation Kit is an ideal platform for experimentation with the TRITON-TX6UL’s mainline (4.4) kernel-based Linux distribution.

There is a connector for an EDT “family” capacitive touch-screen display, as well as RTC, dual USB and dual CAN ports.

WiFi is provided by a Silicon Labs WF111 802.11 b/g/n module via an SDIO interface.

The board can also be used with other TRITON-TX family modules, but dual Ethernet will only work with TRITON-TX6ULL i.MX6 ULL module, and other modules may also have a reduced complement of UARTs.

You can now purchase the i.MX6 UltraLite Kit at our online shop.


i.MX6 Ultralite Evaluation Kit Bottom

i.MX6 Ultralite Kit underside

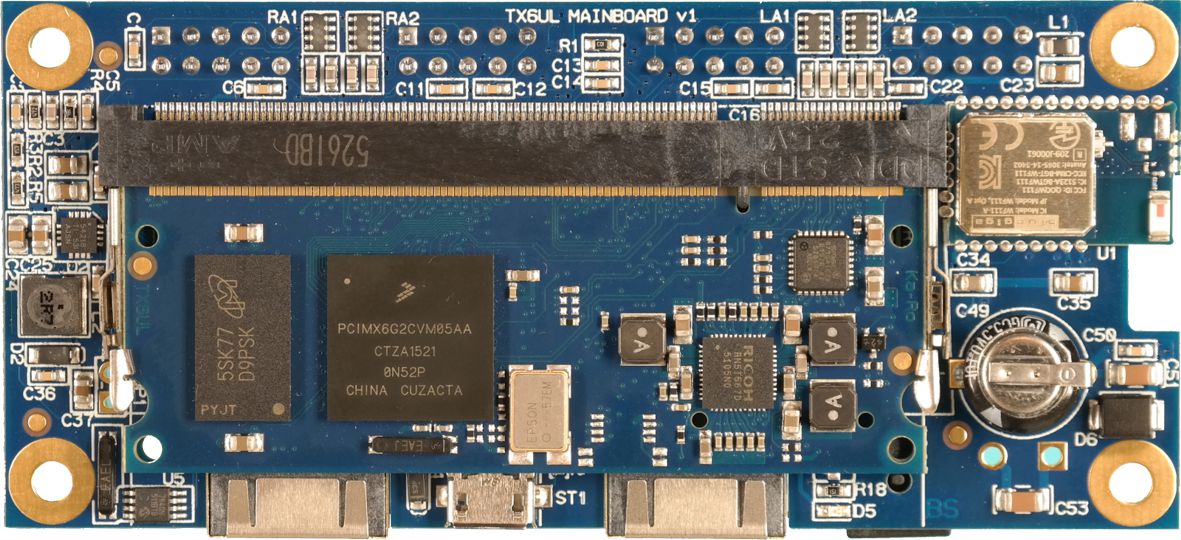

i.MX6 Ultralite Eval Kit Top

i.MX6 UltraLite kit top

Feature table:

Low-cost ARM moduleBased on i.MX6 UltraLite (or ULL)
256MB RAMon-module (512MB with i.MX6 ULL)
4GB eMMCon-module
Up to 8 UARTs2x RS485, 3x RS232, 3x TTL
Wi-Fi 802.11b/g/nSiLabs WF111
10/100 Ethernet2
RTCGold Cap maintained
Display ConnectorCap. touch various sizes
5vDC supplytyp. 500mW
Small size100 x 45 x 17mm
Mainline Linux4.14, Yocto "Rocko" Build
