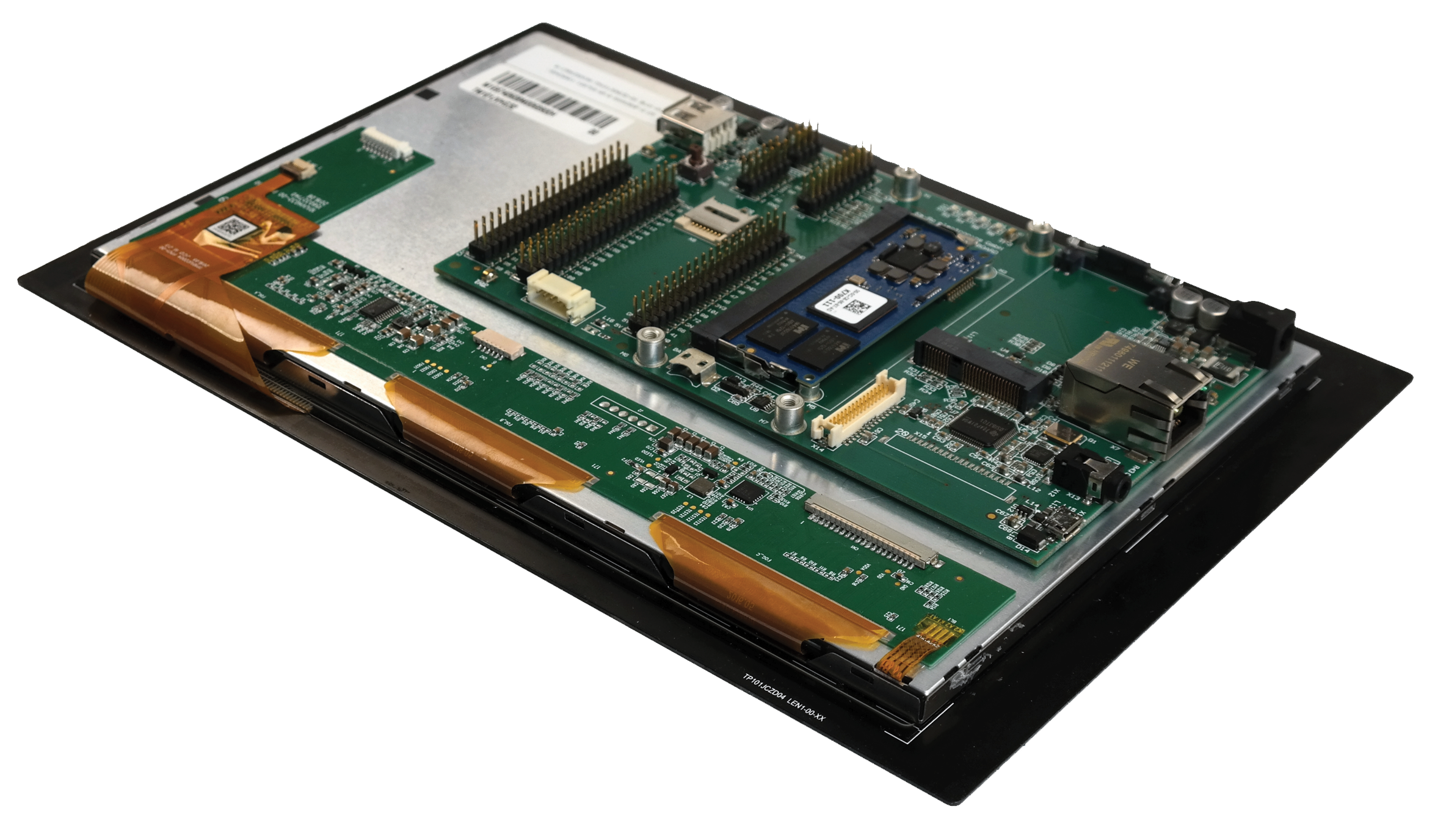

Windows 10 IoT Core DevKit with i.MX8M Mini Quad Module
Windows 10 IoT Core DevKit with i.MX8M Mini Quad ModuleBaseboard with low-cost SODIMM module allows rapid product deployment
Shipping with Windows 10 IoT Core already installed, and using the powerful 64-bit 4-core TX8M module with i.MX8M Mini processor with 1GB RAM and 4GB eMMC, this development kit allows rapid development of IoT Core applications, which can then easily be deployed by replacing the development baseboard with a simple custom board acting as a carrier for the i.MX8 module.
To meet users’ needs for a slightly larger, higher resolution display, we have incorporated a 10.1″ 1280 x 800 resolution touch screen which is connected via the processor’s native MIPI-DSI interface. Other interfaces include:
- Mini-PCI expansion port
- RJ45 Ethernet connector
- 3.5mm audio jack
- 120-pin expansion header
- MIPI-CSI camera port
- micro-SD Card
You can now purchase the Windows 10 IoT Core Kit with i.MX8M Module on our online shop.
Feature table:
| Feature | Details |
|---|---|
| Low-cost ARM module | Based on i.MX8M Mini Quad Core (or Nano Dual Core) |
| 1GB RAM | on-module (512MB with i.MX8M Nano) |
| 4GB eMMC | on-module |
| miniPCIe | PCIe expansion port |
| Ethernet | RG45 10/100 Ethernet |
| Audio | 3.5mm jack |
| Camera port | MIPI-CSI |
| micro-SD | Holder |
| 120-pin expansion port | |
| Windows 10 IoT Core | Installed |
Guaranteed lifetime is a key reason to choose us – some TRITON products have already been shipping for over 10 years. The TRITON-TX module family is guaranteed to be available, in small or large quantities for at least 10 years. This is a minimum, with expected lifetimes of 15 years where possible. Direct Insight brought the first system-on-module to market in 1999, and has a unique track-record in maintaining partnership with our customers for the long-term, supporting you throughout the product life-cycle.
Because the TRITON-TX modules are manufactured in a high-quality small-batch production facility within the EU, there are never problems with manufacturing standards or with supply. If you order 100 modules and we don’t have them in stock, we will make them. Often, cheap modules are produced in large batches by volume-oriented contract manufacturers in the Far East, and once they are gone, they are gone.
Our BSPs for both Linux and Windows CE are complete, and are designed so that you can use them without further development or modification. One of the key advantages of the system-on-module approach is rapid time-to-market, and requires a reliable, production-ready BSP, and a ready-to-roll compatible tools setup. For Linux, we supply a pre-configured VM SDK, and for Windows CE, everything is ready to use with Microsoft’s downloadable toolkit.
Further to our 10-year longevity guarantee, additional security is provided by the pin-compatible nature of the TRITON-TX range, which means that suitable baseboard designs can take all the modules from this family, including those based on i.MX25, i.MX27, i.MX28, TI AM3354, i.MX51, i.MX53 and i.MX6, and allows older modules to be replaced by the latest designs, with new features, better price-performance, and renewed longevity.
Striving for the best technical support provision to our customers is what makes Direct Insight stand out. Using a system-on-module is all about achieving a quicker, smoother route to project completion. We have supported our customers in many hundreds of system-on-module projects over the last 15 years, and are uniquely placed to assist you.i.MX6/8 processors have a sophisticat
ed feature called High Assurance Boot (HAB) which potentially allows the user to secure the device against code modification, while preserving the ability to update. This is achieved by programming public keys into the device, against which the private-key signed image and data are validated. We offer HAB programming during manufacture to enable customers to easily secure their device.
