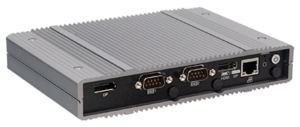

Low-power fanless industrial PC with Apollo Lake

Twice as powerful as previous Atom-class processors, Intel Apollo Lake combines performance and low-power, permitting small footprint fanless operation thanks to a dual or quad-core x5-E3930 or x7-E3940/50. The ECD700-AL is a Windows 10-ready tiny, embedded industrial PC system with huge processing power, capable of playing multiple video streams and driving multiple graphical and touch screen displays. The ECD700-AL is perfect for a broad range of  embedded and industrial PC applications.

As well as a broad range of storage options thanks to onboard eMMC, plus an internal 2.5″ drive bay as well as mSATA, miniPCIe and M.2 slots, the ECD700-AL combines 2 or 4GB of DDR3L onboard with a SODIMM slot for maximum flexibility.

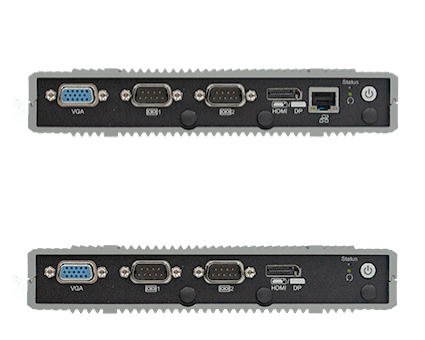

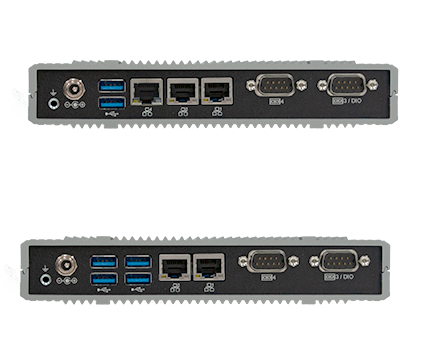

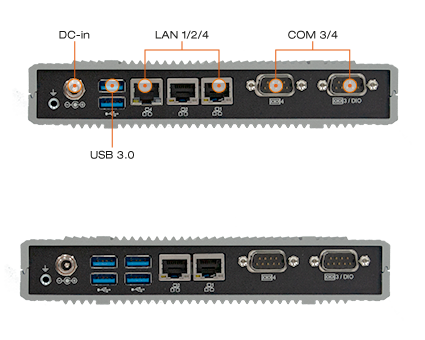

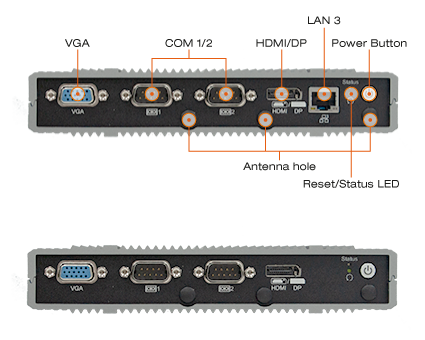

There are 4x COM ports, one of which may be repurposed as 8 bits of GPIO, 2 or 4 GB Ethernet ports, 2 or 4 USB 3.0 ports,  and HDMI/Displayport plus VGA (or second DP) output.

VESA and wall mounting kits are available, and a full industrial version is rated to -40C making it suitable for outdoor and industrial applications.

pdf-iconDownload Datasheet

Eligible for Low Cost Windows 10 licensing

This product can be supplied with Windows 10 IoT Enterprise “Entry”, with a licence cost under £40, while preserving full Windows 10 functionality.

MORE INFO

Feature Table

ResourceECD700-ALDetail
ProcessorIntel x5-E3930, x7-E3940, x7-3950, N4200Apollo Lake 2,4 core. Sister product
CPU6th gen. Atom / PentiumIntel Gen.9 Graphics
Processor Clock Max (GHz)1.8-2.5
RAM (GB)2/4DDR3L on board, plus SODIMM slot
M.2 SSD (GB)32/64/128/256+Via M.2, other sizes available
mSATA SSD (GB)32/64/128/256+
SATA SSD (GB)y2.5" internal. Or HDD
eMMC (GB)8/16/32/64optinal
PCIe1full-size miniPCIe (USB/reset/nanoSIM)
UART (RS232/485)4
Ethernet 1000 BaseT2/4
USB Host2/4USB 3.0
GPIO8Alternate function of COM1
Watchdog timer1
HDMI/DP/VGA21x HDMI/DP, 1x VGA or DP
WiFi*Optional miniPCIe card (LPC), Antenna site
3G / GPRS modem*Optional miniPCIe card, SIM holder onboard, antenna site
Power9-36vAdapter supplied, optional battery pack available
Temperature Range-20C to 60C-40C to 70C also available
Dimensions180 x 121 x 33mmVESA mounting fixtures
CertificationCE / FCC Class B
Windows 7yon request
Windows 10yEligible for "Entry" Windows 10 IoT Enterprise licence level
QNXy
LinuxyUbuntu / Debian

The ECD700-AL is a small, rugged unit with soldered down memory. It is ideal for all industrial, embedded and automotive applications, whether running Linux or Windows. The low power consumption lends itself to space-limited environments, and so this unit is also ideal for high-end signage and point-of-service applications, including dual-screen.

Thanks to its modem and Wi-Fi capabilities, the ECD700-AL is well-suited to IoT applications and is Azure IoT certified.

Please consider sharing your project details with our experienced engineering team – via the “Get Quote” link, by calling +44 1295 768800, or via Live Chat. We’ll be happy to answer detailed questions and guide you to the right solution.

For smaller quantities or immediate delivery there are “standard” configurations:

Quad Core E3950 with 4GB DDR3L RAM, 64GB eMMC, 4LAN, 2USB, -40/+70C, DP/HDMI+VGA
Quad Core E3940 with 4GB DDR3L RAM, 32GB eMMC 4LAN, 2USB, -20/+60C, DP/HDMI+DP
Dual Core E3930 with 2GB DDR3L RAM, 16GB eMMC, 2LAN, 4USB, -40/+70C, DP/HDMI+VGA
Quad Core N4200 with 4GB DDR3L RAM, 32GB eMMC, 2LAN, 4USB, -20/+60C, DP/HDMI+VGA

Please call or email for an immediate quotation
