Tiny low-cost solder-down module with NXP’s i.MX91 processor
27mm SoM offers low-power, low-cost 64-bit solution

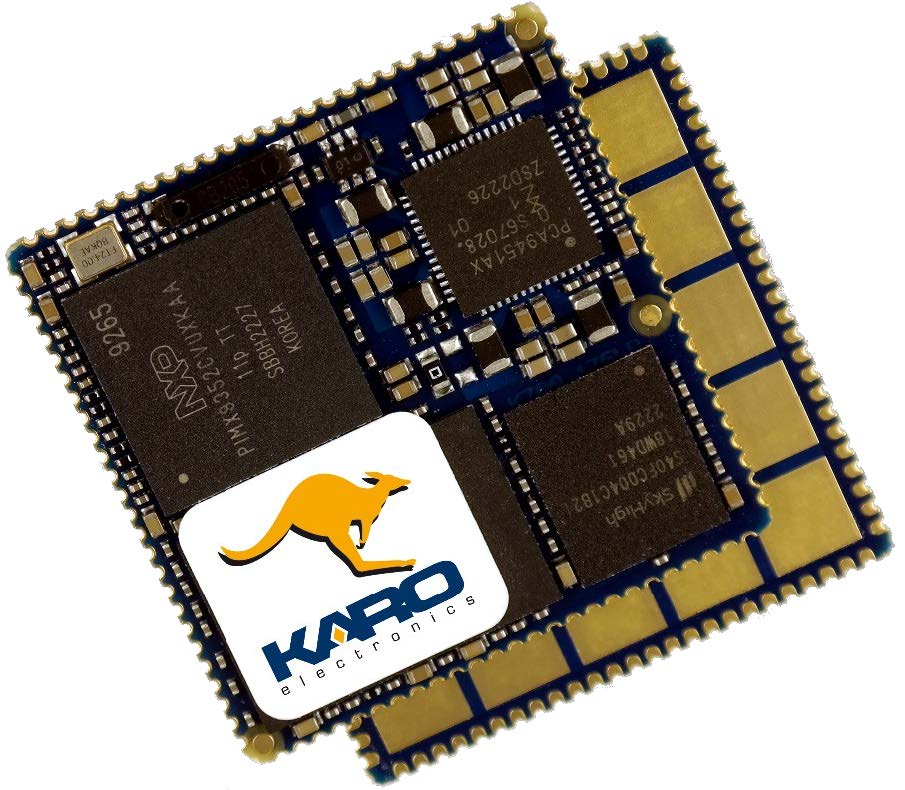

The QS91 is a 27mm x 27mm QFN Style solder-down system-on-module with NXP’s i.MX9131 with single-coreARM Cortex-A55 processor, plus RAM, Flash memory and power management, integrated on a QFN-footprint PCB with excellent EMC, thermal and cost optimisations. The module is square, with a height of 2.7mm, and requires a single 3.3v supply. An extended operating temperature range of -25C to +85C is supported.
The QS91 module’s i.MX91 processor provides a 1.4 GHz ARM Cortex-A55 core. There is 512MB of of LPDDR4 RAM, 4GB eMMC Flash, and a wide range of interfaces including dual USB and Ethernet.
The single-core design offers energy efficiency and reduced cost, in comparison to the i.MX93-based QS93. Display connectivity is simplified by the RGB parallel display interface. Optimal security features are provided by NXP’s Edgelock Secure Enclave.
QS91 comes with a dedicated development system, equipped with Linux BSP.
Development kits are in stock from Q1 2026 – simply follow the “Buy Online” link below.
Download Datasheet and Pinout| Resource | QS91 | Detail |
|---|---|---|
| Processor | NXP i.MX9131 | |
| CPU | ARM Cortex-A55 | |
| Processor Clock Max (MHz) | 1400 | |
| Embedded Microcontroller | - | Requires QS93 |
| RAM (MB) | 512 | x16 LPDDR4 |
| Persistent Storage | 4GB | extended temp eMMC |
| UART (RS232) | 3 | up to 8 via pin-sharing |
| GB Ethernet | 1 | |
| I2C Interface | 2 | up to 7 via pin-sharing |
| LCD Controller | 1 | parallel RGB |
| Camera | - | Requires QS93 |
| Audio | 1 | SAI |
| SD card/SDIO (4-bit) | 1 | 4-wire, SD Card receptacle on baseboard |
| USB | 2 | 2.0 |
| SPI | 2 | up to 8 via pin-sharing |
| CAN | 2 | CAN-FD |
| PWM | 6 | |
| GPIO | up to 84 | |
| Temperature Range | -25C to +85C | |
| Dimensions | 27mm x 27mm | depth 2.6mm |
| Power Consumption | <1W | 415/35 mW Linux/Sleep |
| QNX | TBA | |
| Linux | y | Yocto, Debian |

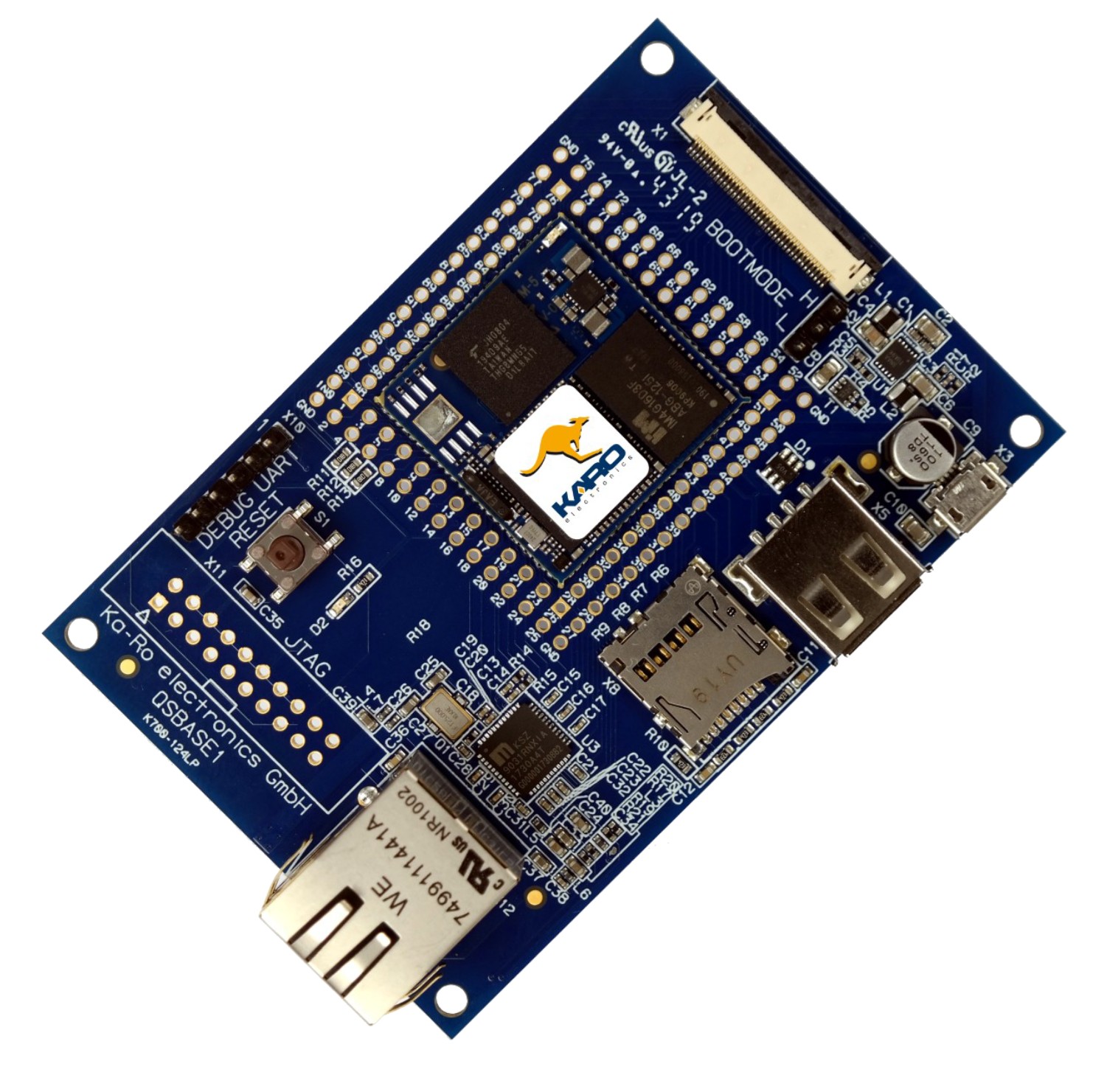

In order to provide developer access to the module’s RGB display output, a special development kit – the QSBASE91 – is available for QS91. QSBASE91 is a simple 2-sided PCB design and features:
- GB Ethernet
- USB
- RGB TFT display connector
- USB type-C connector power
- SD Card
For production purposes, you will require a custom baseboard for the solder-down version of your module, and we are happy to offer baseboard design and manufacture as a service.
Development kits are in stock and can be purchased from our online shop.
The QS91 module is available to order now. The following configuration is available:
QS91-3110 (QS91/31C/512S/4GF/E85)
You can order the QSBASE91 kit from UK stock via our online shop, using the “Buy Online” link below, and it should be with you in a couple of days. We look forward to providing you with knowledgeable, professional support to create your product. If you have questions, please don’t hesitate to contact us by calling Direct Insight on +44 1295 768800 9am to 5.30pm UK time, emailing info at directinsight.co.uk, or by using the “Contact Us” form below.
Contact our experienced team with your detailed questions – we’ll be happy to help.
You can quickly access volume pricing information using the following link: Get Quote
Development kits and sample/spare modules are available from stock
QS91 may be used via a socketed module with QSBASE4 for headless designs (enquire for more details), but because of the standard parallel RGB display output is generally used with a dedicated QSBASE91 development kit based on QSBASE1 which may be purchased online from our UK stock.
QFN-Style SoM Advantages
For larger volume applications, or where a tiny footprint is needed, Ka-Ro QFN solder-down modules fit the bill perfectly.
In addition they offer:
Guaranteed Longevity
Longevity is a major issue for ARM-based system-on-modules, as they don’t conform to any industry-standard pinout. Since the first system-on-module shipped in 2002, we have guaranteed the lifetime of our products. For our NXP and ST Micro based products longevity guarantees are underwritten by the vendor, with 10 year lifetime guaranteed, with an expectation of 15 years from launch.
Because Ka-Ro modules are manufactured in a high-quality small-batch production facility in Ka-Ro’s own factory in Aachen Germany, there are never problems with manufacturing standards or with supply. If you order 100 modules and we don’t have them in stock, we will make them. Often, modules are produced in large batches by volume-oriented contract manufacturers in the Far East, and once they are gone, they are gone, until orders for at least 5,000 accumulate in order to justify a run.
Our BSPs for Yocto Linux, Debian, Windows 10 IoT Core and QNX are in most cases complete, and are designed so that you can use them without further development or modification. One of the key advantages of the system-on-module approach is rapid time-to-market, and this cannot be realised if there is an unknown amount of extra work to be done to achieve a complete production ready hardware + software platform.
QS family modules offer a high degree of pin-compatibility. It is therefore possible to design baseboards which are ready for different QS/QSX family members, so that decisions on processing power can be deferred until the application is finished and tested, without delaying completion of hardware design. Additionally, customer products may be upgraded as new, more powerful pin-compatible modules become available.
We are experts in what we do. As well as 25 years of experience in supporting hundreds of SoM design-ins, our services group develops software, including full BSPs, and complex baseboard hardware in-house. This level of knowledge means that you can be absolutely confident of success in your project, thanks to our ability to support you, and to quickly resolve any problems which may arise along the way. Find out more about our support and services.
