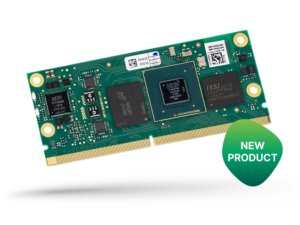

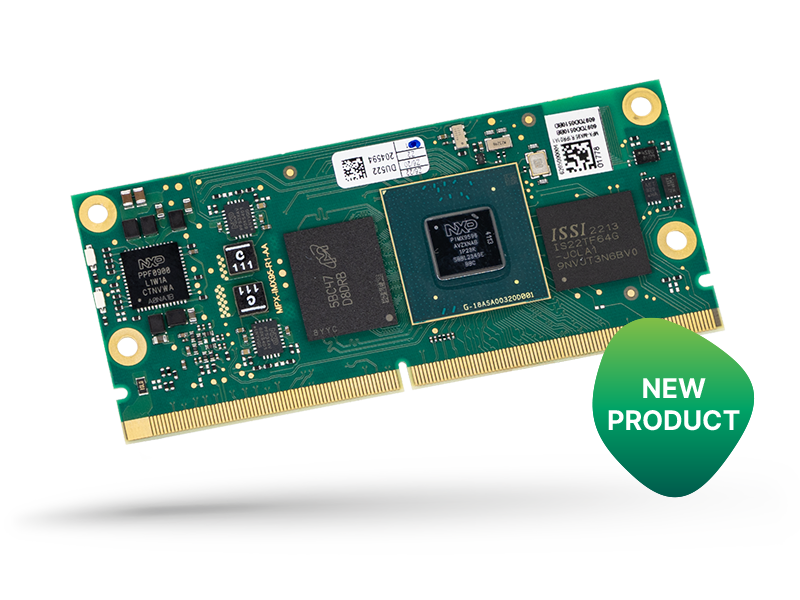

miriac® MPX-MX95 system-on-module
i.MX95 module with maximum connectivity, automotive and FuSa-ready
New from MicroSys, the miriac MPX-95 module is optimised for high-performance, connectivity-rich and functional-safety and security-conscious applications of the i.MX95 processor, including autonomous systems, automotive, and medical applications.
The MPX-MX95 is based on multiple heterogeneous processing units including up to 6 cores 2.0 GHz ARM Cortex-A55 plus two independent real-time co-processors: a 800MHz ARM Cortex-M7 and an ARM Cortex-M33 up to 333MHz supporting Trustzone-M. It offers high-speed data processing alongside high-performance real-time and safety/low-power uses.
The innovative SoM also supports safety, so that the i.MX95’s potential for IEC61508 (SIL 2) for Industrial and ISO26262 (ASIL B) for Automotive Security, and other aligned industry standards can be realized. All necessary internal voltages are routed to the module connector to allow, for example, monitoring via a supervisor. Additional safety requirements can be met by using a current sensor to measure parameters such as the power consumption of the SoM, CPU logic, and core. Two temperature sensors are also available for system monitoring. A QNX Board Support Package is in development.
The i.MX95 offers NXPs most advanced cybersecurity features so that systems can be designed for CRA compliance and beyond. These include AHAB secure boot, EdgeLock Secure Enclave (Advanced Profile) with EdgeLock Accelerator (V2X) including Post Quantum Cryptography (PQC). These features can be supported alongside a cybersecurity-hardened version of the Linux BSP available from Direct Insight.
The wide range of supported connectivity is summarized in the table below.
A feature-rich carrier board – the CRX-MX95 is available for development purposes.
Download Datasheet| Resource | MPX-MX95 | Detail |
|---|---|---|
| Processor | NXP i.MX95 | |
| Main CPU | 6x ARM Cortex-A53 | plus 4x ARM Cortex-M7 in lockstep pairs |
| Processor Clock Max (MHz) | 1800 | |
| RAM (GB) | 16 | LPDDR5x32 w.ECC Smaller RAM sizes on request |
| Persistent Storage | 64GB | eMM,C + Octal-Flash and SD connectors. EEPROM fitted |
| Coprocessors | GPU, VPU | 2D/3D GPU, 4k VPU |
| MCUs | 2 | Cortex-M7 and Cortex-M33 subsystems |
| Ethernet GBe | 2 | RGMII |
| Ethernet 10 GBe | 1 | XFI/USXGMII |
| PCIe | 2 | Gen 3.0 |
| UART | 5 | max |
| I3C | 1 | max |
| I2C Interface | 7 | max |
| SPI | 7 | max |
| FlexSPI | 1 | |
| CAN FD | 4 | max |
| MIPI-DSI Display | 1 | |
| LVDS Display | 2 | |
| MIPI-CSI Camera | 2 | one multiplexed with DSI display |
| SD card/SDIO (4-bit) | 2 | |
| SPDIF/PDM | Yes | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| ADC | 8 | 8 channel, 12bit |
| RTC | 1 | |
| Temperature Sensors | 2 | |
| Temperature Range | -40C to 85C | |
| Dimensions | 82 x 35mm | |
| Connectors | SODIMM314 | MXM 3.0 connector |
| Linux | y | Yocto Project compatible. |
| QNX | TBA | |
| VXWorks | TBA |

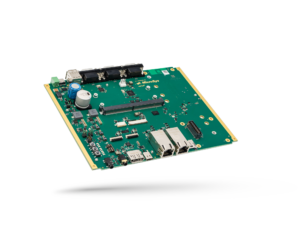

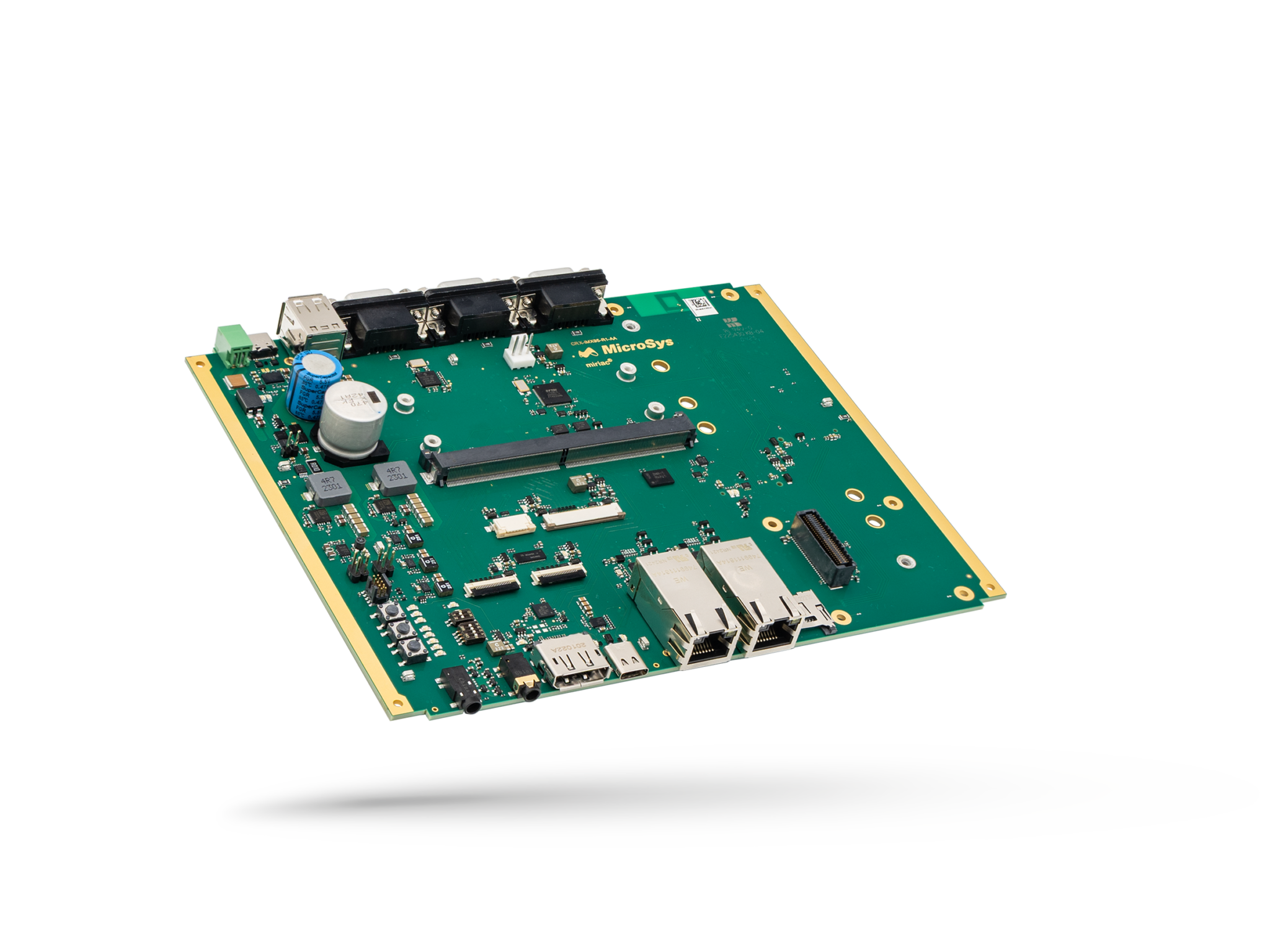

The CRX-MX95 baseboard delivers comprehensive connectivity when developing with the miriac MPX-MX95 module.
The baseboard uses a flexible mezzanine daughter-board concept to allow alternative connectivity configurations to be offered.
With a single 9-36v power input and measuring 200mm x 140mm, the board ships with Linux pre-installed.
Connectivity includes:
- 2xGbE RJ45
- 2x USB 2.0 Type A
- 1x USB-C
- 6x 100/1000BASE-T1
- 1x SFP+ Connector (fibre)
- 1x 10GBase-T
Module and development board are now available to order. Please contact us for pricing.
If you are interested in purchasing the development kit, please request a quotation, and ask about module pricing.
Simply click the “Get Quote” link to the right.
Guaranteed lifetime is a key reason to choose us – all MicroSys modules are guaranteed to be available for 15 years from launch. This is a minimum, with lifetimes expected to be expanded in line with NXP longevity policies. Direct Insight brought the first system-on-module to market in 1999, and has a unique track-record in maintaining partnership with our customers for the long-term, supporting you throughout the product life-cycle.
Because Miriac modules are manufactured in a high-quality small-batch production facility within the EU, there are never problems with manufacturing standards or with supply. If you order 100 modules and we don’t have them in stock, we will make them. Often, cheap modules are produced in large batches by volume-oriented contract manufacturers in the Far East, and once they are gone, they are gone.
Linux and QNX BSPs are developed within a small network of European specialists, including Direct Insight, They are production-ready and are designed so that you can use them without further development or modification. One of the key advantages of the system-on-module approach is rapid time-to-market, and requires a reliable, production-ready BSP, and a ready-to-roll compatible tools setup.
All Miriac modules are designed to be pin-compatible within their specific range, so you can change up or down to a different module in the same family.
We are experts in what we do. As well as 25 years of experience in supporting hundreds of SoM design-ins, our services group develops software, including full BSPs, and complex baseboard hardware in-house. This level of knowledge means that you can be absolutely confident of success in your project, thanks to our ability to support you, and to quickly resolve any problems which may arise along the way. Find out more about our support and services.
NXP processors offer secure boot, which potentially allows the user to secure the device against code modification, while preserving the ability to update. This is achieved by programming public keys into the device, against which the private-key signed image and data are validated. We offer secure boot programming during manufacture to enable customers to easily secure their device.
