Kit Contents

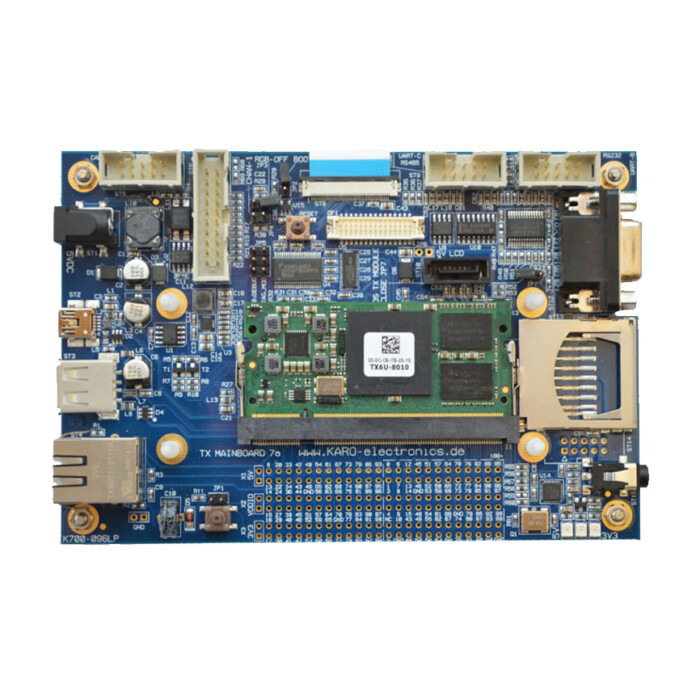

  • Mainboard-7 Baseboard, including connectors for:
    • SD-card socket
    • USB 2.0 OTG and USB 2.0 Host connector
    • SATA Connector (requires appropriate module type)
    • 3.5mm headphone/mic connector
    • JTAG interface
    • RS232 on SUB-D
    • RS485 on header
    • CAN on header
    • LVDS connector with I2C
    • All pins of the TX socket are connected to header locations for easy application design-in
    • 10/100 Mbit/s Ethernet
    • 5V DC Power Supply Barrel Connector.
    • 98mm × 148mm
  • No Module Included
    • 5.7″ Capacitive Touch Display
      • USB A to mini B cable
      • Serial cable

      Display

      This version of the kit contains no module, and should only be purchased with a module. An version of the kit not including touch-screen display is available (see separate item)

      Modules

      The Mainboard-7 is compatible with the whole current range of TRITON-TX modules.
