Kit Contents

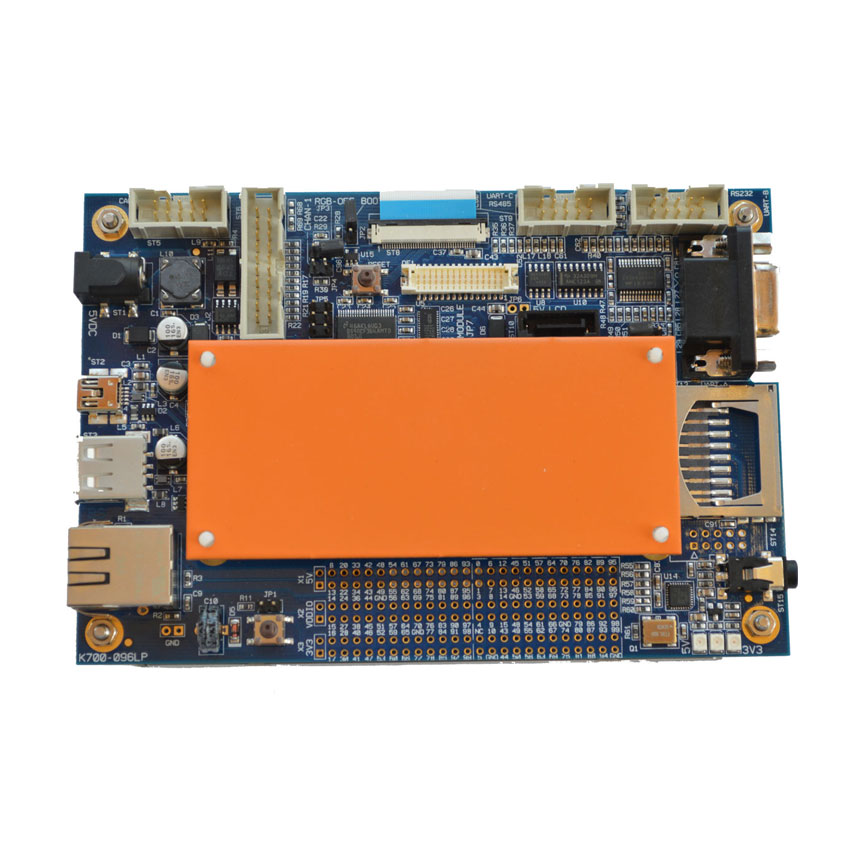

  • Mainboard-7 Baseboard, including connectors for:
    • SD-card socket
    • USB 2.0 OTG and USB 2.0 Host connector
    • LVDS connector
    • 40pin LCD flat cable header
    • 3.5mm headphone connector
    • JTAG interface
    • Audio codec
    • 2xRS232 on 10pin flat cable header and SUB-D
    • RS485 on 10pin flat cable header
    • CAN on 10pin flat cable header
    • All pins of the TX socket are connected to daughter board slot for easy application design-in
    • 10/100 Mbit/s Ethernet
    • 5V DC Power Supply by Barrel Connector.
    • 100mm × 150mm
  • TRITON-TXMP/157C Module, currently shipping with the following specification:
    • ST32M157C Dual Core 650MHz Processor
    • 512 MByte DDR3L
    • 4GB eMMC Flash
    • Dimensions: 68mm × 26mm
    • Temperature range -25°C to 85°C
  • CD/download, including:
    • Linux BSP, including sources
    • Documentation
    • Baseboard schematics
  • USB A to mini B cable
  • Serial cable

Optional Spare Modules

The Mainboard-7 is compatible with the whole range of TRITON-TX modules. You may purchase spare modules or other modules from the range to compare.
