TRITON-TXCT COMpact TFT touch screenA complete, configurable, thin TFT touch solution

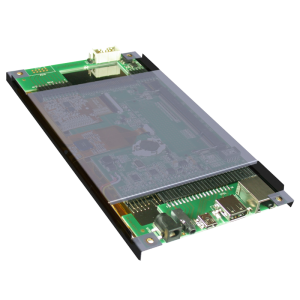

TRITON-TXCT is a production-ready solution comprising an SBC based on a choice of TRITON-TX ARM-based system-on-modules with a 7” capacitive touch screen, in an integrated 14mm thick assembly.

Depending on the sophistication of graphics and video performance required, users can choose from the range of TRITON-TX modules, from a low-cost ARM9 TRITON-TX28 up to a quad-core ARM Cortex-A9 TRITON-TX6Q. Android, Linux and Windows Embedded operating systems are supported.

Extensive connectivity includes an integrated micro-SD socket as well as a wide variety of interfaces available via headers, which can be connected to a standard or user-generated daughterboard to add specific connectors. A pair of standard edge-located daughterboards are optionally supplied which provide connectors for Ethernet, 2x USB, a headphone socket, RS-232, a DC power jack (5v) and CAN. Other available interfaces include audio in, 2nd and 3rd UART, SPI, I2C, CMOS sensor and up to 27 GPIO lines. A lithium button cell is provided for the on-module real-time clock.

The high brightness 7” touchscreen features 800×480 resolution, and projected capacitive polytouch. The unit offers extended (-20C to +70C) temperature range support, and measures just 166 x 106 x 14mm.

pdf-iconDownload Datasheet.     For further TRITON-TX downloadable documents click here.
