TRITON-TXSD System-on-Module with Qualcomm Snapdragon 410e
TRITON-TXSD System-on-Module with Qualcomm Snapdragon 410eQuad Core ARM Cortex-A53 module offers Linux and future Windows 10 IoT Core support
TRITON-TXSD is the latest member of the TRITON-TX family of pin-compatible modules, which combine guaranteed longevity of production with quality EU manufacture, and features 4-core 64-bit processing, Windows 10 support, and optional Wi-Fi plus Bluetooth radio on-module

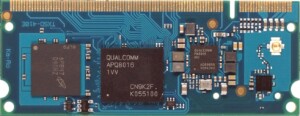

The TRITON-TXSD SoM is based on Qulacomm’s Snapdragon 410E APQ8016E SoC processor which features quad 64-bit ARM Cortex-A53 cores running at 1.2GHz. The module also provides 1GB of LPDDR3 RAM and a 4GB eMMC. Dedicated multimedia codecs handle video at up to 1080p30 decode and 720p30 encode, and graphics are powered by an 306 3D accelerator with OpenGL ES 3.0, OpenCL 1.1e (Android) and DirectX 9.3 (Windows 10) support. Capacitive and resistive touch screen displays are supported via an LVDS interface. Additional connectivity offered by the module’s Snapdragon processor include 13MP MIPI camera interface, SD-card, GPIOs and 4 configurable UART/SPI/I2C interfaces.
The 68mm x 24mm SoM also optionally populates the processor chipset’s integral radio offering 802.11b/g/n Wi-Fi and Bluetooth 4.1/LE. An external antenna connection is provided.
TRITON-TXSD comes with Linux, Android (TBC) and Windows 10 IoT Core (TBC) BSPs. The Snapdragon 410E-based TRITON-TXSD module takes a single 5.0v supply and features 1.8v I/O.
Download Datasheet For further downloadable documents including pinout click here.
Development kits for TRITON-TXSD are available from UK stock – to purchase simply follow the “Buy Online” link below.
Guaranteed lifetime is a key reason to choose us – some TRITON products have already been shipping for over 10 years. The TRITON-TX module family is guaranteed to be available, in small or large quantities for at least 10 years. This is a minimum, with expected lifetimes of 15 years where possible. Direct Insight brought the first system-on-module to market in 1999, and has a unique track-record in maintaining partnership with our customers for the long-term, supporting you throughout the product life-cycle.
Because the TRITON-TX modules are manufactured in a high-quality small-batch production facility within the EU, there are never problems with manufacturing standards or with supply. If you order 100 modules and we don’t have them in stock, we will make them. Often, cheap modules are produced in large batches by volume-oriented contract manufacturers in the Far East, and once they are gone, they are gone.
Our BSPs for both Linux and Windows CE are complete, and are designed so that you can use them without further development or modification. One of the key advantages of the system-on-module approach is rapid time-to-market, and requires a reliable, production-ready BSP, and a ready-to-roll compatible tools setup. For Linux, we supply a pre-configured VM SDK, and for Windows CE, everything is ready to use with Microsoft’s downloadable toolkit.
Further to our 10-year longevity guarantee, additional security is provided by the pin-compatible nature of the TRITON-TX range, which means that suitable baseboard designs can take all the modules from this family, including those based on i.MX25, i.MX27, i.MX28, TI AM3354, i.MX51, i.MX53, i.MX6, and Snapdragon 410E and allows older modules to be replaced by the latest designs, with new features, better price-performance, and renewed longevity.
Striving for the best technical support provision to our customers is what makes Direct Insight stand out. Using a system-on-module is all about achieving a quicker, smoother route to project completion. We have supported our customers in many hundreds of system-on-module projects over the last 15 years, and are uniquely placed to assist you.| Resource | TRITON-TXSD | Detail |
|---|---|---|
| Processor | Qualcomm Snapdragon 410e | APQ8016E |
| CPU | 4x ARM Cortex-A53 | 64-bit. includes Neon SIMD / VFP per core |
| Processor Clock Max (MHz) | 1200 | |
| RAM (MB) | 1024 | LPDDR3 |
| Persistent Storage | 4GB | eMMC |
| Graphics | Adreno 306, 400MHz | Open GL ES 3.0, Open CL 1.1, DirectX 9.3 |
| Video | up to 1080p30 | decode and encode |
| Display | 1280 x 720 | LVDS |
| Floating Point | y | ARM Cortex-A53 Neon VFP |
| UART (RS232) | 2 | 4 further possible via pin sharing |
| Ethernet 10/100 BaseT | - | via USB converter for development |
| I2C Interface | 1 | |
| LCD Controller | 1200x720 | |
| LVDS | 1 | |
| Supplied LCD | 640x480 | Capacitive touch, other sizes on request |
| Audio | 2 | 1x Audio codec on module |
| SD card/SDIO (4-bit) | 1 | SD Card receptacle on baseboard |
| USB | 1 | OTG |
| SPI | 2 | |
| PWM | 1 | |
| Keypad | 1 | 5x4 |
| JTAG | 1 | 20-pin header on baseboard |
| Analog Audio | ** | codec on baseboard |
| Camera Interface | 2 | MIPI-CSI up to 13MP |
| RTC | 1 | |
| Radio | 1* | 802.11b/g/n 2.4GHz WLAN / BT 4.0 (optional fit) |
| Temperature Range | -25 to +85C | |
| Dimensions | 68 x 26mm | |
| Connectors | SODIMM200 | TRITON-TX range compatible pinout |
| Longevity (years) | 10 | Guaranteed supply to 2026 |
| Android | y | version TBC |
| Windows 10 IoT Core | y | availability date TBA |
| Linux | y | |
| Qt | y |
Mainboard-7 provides a complete development environment based on TRITON-TXSD and all the other TRITON-TX family members, running mainline Linux, Android 5.1.1 or Windows 10 IoT Core Pro out-of-the-box. The development system consists of a baseboard which provides 0.1″ headers, plus connectors for all the main module interfaces. Other connectors include USB, SDCard, CAN, RS-232 and RS-485. The Mainboard-7 offers an optional 640×480 capacitive touch screen, and an LVDS output to enable connection of other screen sizes. For production purposes, you will require a custom baseboard, and we are happy to offer baseboard design and manufacture as a service.
Since the Snapdragon 410E has no Ethernet port, a USB to Ethernet hub is provided with the kit.
TXSD-410E/1200/1GR/4GF/L is the standard SKU for this product – quotation on request. Development kits come with the radio populated, but please bear in mind that this is not a pre-certified solution. Volume modules are usually quoted without radio unless otherwise specified.
TRITON-TXSD is now in full production and Mainboard-7 development kits are available from stock – please order via the online shop (link to the right).
