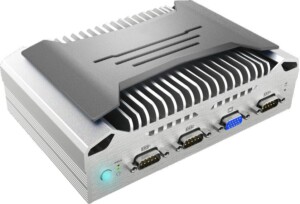

ECD70A Industrial Embedded PC with Skylake Core i3/i5/i7

World’s smallest fanless system with 6th Generation Intel Processor

Equipped with a 6th/7th Generation Intel Core U-series processor with just 15W TDP, the ECD70A fanless embedded PC has up to 8GB of high-performance onboard DDR4 RAM to enable accelerated computing.

Extensive I/O support including 2x GBe, 4x COM, 4x USB 3.0 as well as SATA and internal 2x miniPCIe makes a flexible IoT-ready solution, and 4K-capable dual-display support including HDMI and VGA, is provided.

The miniature fanless design is ideal for space-limited industrial applications. Options include SATA HDD or SSD or half-size mSATA solid-state storage, and Wi-Fi kit. VESA mounting and DIN rail kits are available.

Wide temperature support (-20C to +60C) is standard, and optionally, 2 of the 4 GbE ports are 802.3af PoE capable.

pdf-iconDownload Datasheet

Feature Table

SYSTEM Processor 6th Generation Intel Core Processors, Skylake BGA 1356
Intel CoreTM i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel CoreTM i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel CoreTM i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
For low-power Atom Processors see ECD700 tiny fanless PC
Memory 4GB/8GB Memory Onboard, Dual Channel DDR4 2133MHz
BIOS Insyde SPI 128Mbit
GRAPHICS Controller Intel HD Graphics GT Series
Feature OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
Display 1x VGA: resolution up to 2560x1600 @ 60Hz
1x HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
Dual Displays VGA + HDMI (DP++ on request)
STORAGE 1 x 2.5" SATA 3.0 Drive Bay
EXPANSION Interface 1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (PCIe/mSATA)
AUDIO Audio Codec Realtek ALC888 5.1-channel
ETHERNET Controller 1 x Intel I210AT PCIe (10/100/1000Mbps)
1 x Intel I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
PoEPoE source2x 802.3af 15.4W PoE GbE ports (option, additional to standard Ethernet ports)
LED Indicators 1 x Power LED
1 x HDD LED

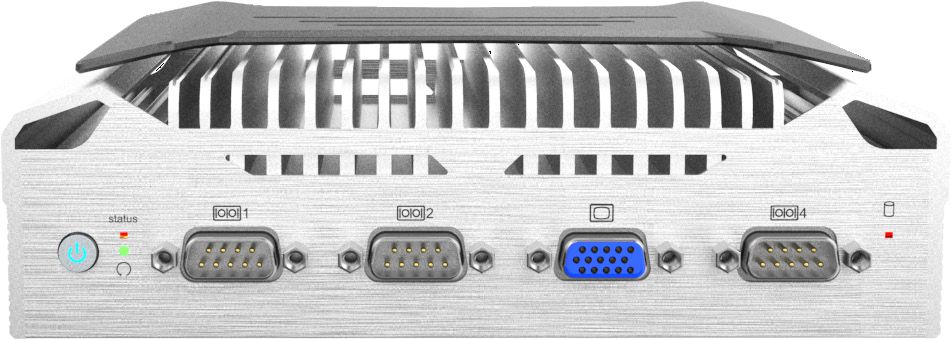

FRONT I/O Serial 3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
Display 1 x VGA
Buttons 1 x Power Button
1 x Reset Button
Wi-Fi Antenna 1 x Wi-Fi Module Antenna Hole

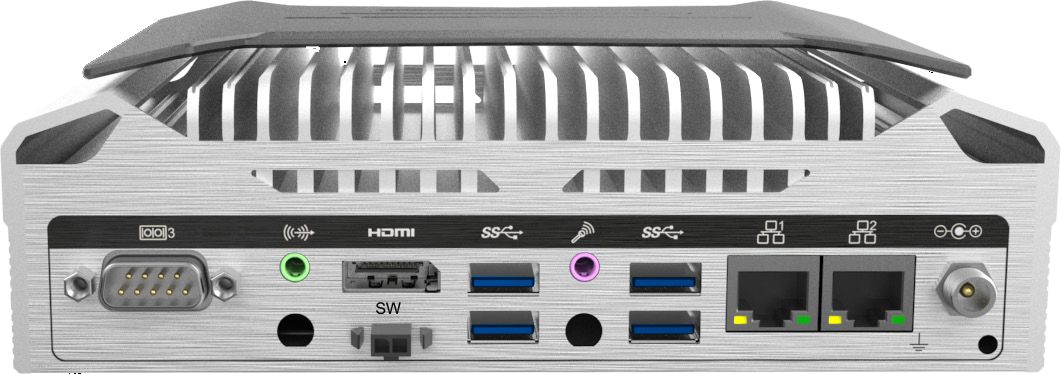

REAR I/O Ethernet 2 x GbE (RJ-45)
Serial 1 x RS-232/422/485 (DB-9)
USB 4 x USB 3.0 (type A)
Display 1 x HDMI
Audio 1 x Line-out
1 x Mic-in
Wi-Fi Antenna 2 x Wi-Fi Module Antenna Hole
WATCHDOG TIMER Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
POWER Type Wide Range 15~36V .
Connector DC Jack
OS SUPPORT Windows 7 (32/64-bit)
Windows 8.1 (64-bit)
Windows 10, WES 7,
WE8S, Win 10 IoT Enterprise
MECHANISM Construction Aluminium + Metal Aluminium
Mounting Wall/VESA/DIN Rail Mount
Dimensions (W x H x D) 181.6mm x 57mm x 129.5 mm
Weight 1.1 Kg
ENVIRONMENT Operating Temperature -20C to 60C (SSD/mSATA), 0 to 45C (HDD)
Storage Temperature -20 to 85C
Relative Humidity 5 to 95% RH (non-condensing)
STANDARDS AND
CERTIFICATIONS 		Shock Operating: 3G, 11ms
Non-Operating: 5G, 11ms
Vibration Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD)

The ECD70A is a small, rugged unit with soldered down internal RAM, usually used with internal mSATA SSD, or alternatively 2.5″ SATA SSD or HDD. The unit can be ordered with WiFi and/or 3G/4G modem installed, and is perfect for a wide range of industrial and embedded applications, whether running Linux or Windows. Our experts can help you get the most out of these operating systems, including Windows Embedded Standard, which requires special licensing and image creation, which we can provide in-house.

The low power consumption lends itself to space-limited environments, and so this unit is also ideal for high-end signage and point-of-service applications, including dual-screen.

Please consider sharing your project details with our experienced engineering team – via the “Get Quote” link, by calling +44 1295 768800, or via Live Chat. We’ll be happy to answer detailed questions and guide you to the right solution.

There are six “standard” configurations, based on:

Intel Core i3-6100U (dual-core, 2.3GHz, 15W TDP)
Intel Core i5-6300U (dual-core, 2.4 GHz, 15W TDP)
Intel Core i7-6600U (dual-core 2.6 GHz, 15W TDP)

for each processor, either 4GB or 8GB DDR4 RAM is available

Configurations with 7th generation processors are being delivered from late 2019:

Intel Core i3-7100U (dual-core, 2.4GHz, 15W TDP)
Intel Core i5-7300U (dual-core, 2.6 GHz, 15W TDP)
Intel Core i7-7600U (dual-core 2.8 GHz, 15W TDP)

Please call or email for an immediate quotation.
