Zynq MPSoC UltraScale module

Production-quality SoM based on Zynq ZU9

Xilinx Zynq MPSoC module

Xilinx Zynq MPSoC module

The Miami MPSoC System on Module (SoM) is based on the latest Xilinx Zynq Ultrascale+ FPGA technology. It is a highly integrated and compact off-the-shelf solution for today’s high performance embedded systems.

The module combines high performance and high-density programmable logic with dedicated hardened IP blocks, such as DSP cores, memory controllers and PCIe endpoints. The unique combination of a quad-core ARM Cortex-A53 64-bit application processor, a dual-core real-time processor, a Mali400 embedded GPU, H.265/264 video codec, and feature rich FPGA fabric makes this platform a versatile and agile platform for many different application domains. The high speed transceivers enable communication links using many different interface standards. The Miami SOM integrates all system components required to bring an embedded system alive including memory, power supply, debugging and connectivity.

The module comes with an actively supported HDL board support package, including a maintained main-line Linux distribution. The Miami MPSoC SoM is compatible and functionally combinable with the whole family of Florida carrier boards, allowing for rapid prototyping and feasibility studies. Based on the Florida reference designs, customized variances can realized reliably with fast turn-around times.

Typical application areas are any existing applications that require a fair amount of processing power combined with a small system footprint including but not limited to (secure) communications, high-performance computing, aerospace & defence, audio/video applications, medical and industrial imaging.

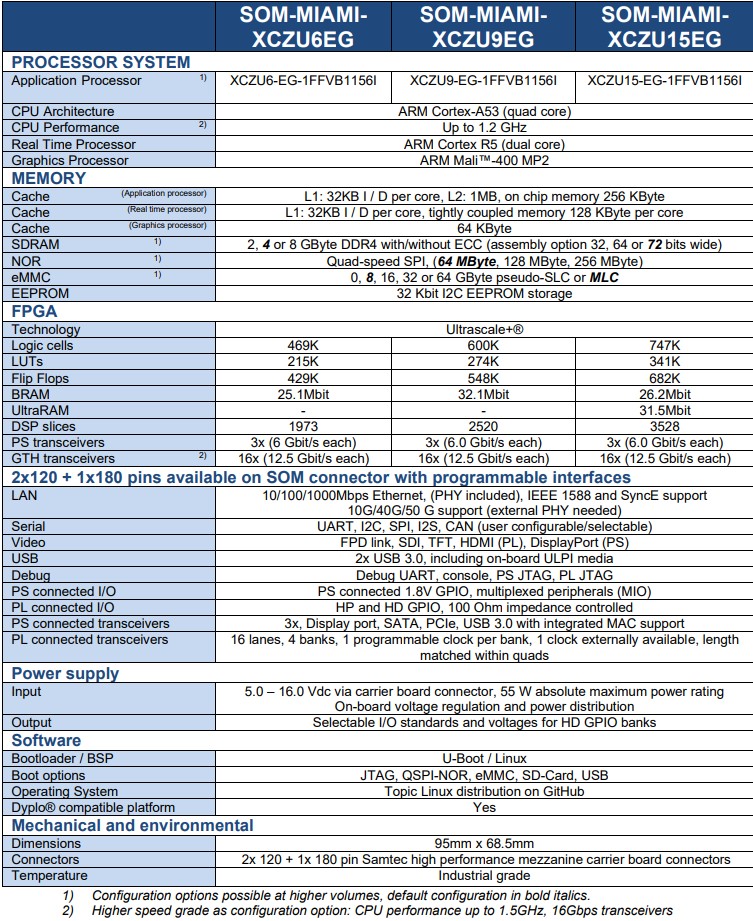

  • Fast image booting meeting PCI Express requirements
  • Dimensions: 65×68.4 mm
  • On-board high efficiency power supplies
  • Configurable board I/O voltages
  • High performance SAMTEC board-to-board connectors
  • Support for SATA3, PCIe, Gigabit Ethernet, Displayport
  • IEEE1588v2 support
  • On-board high-performance DDR3 memory
  • Advanced debug support
  • Industrial temperature range (-40 °C +85 °C)
  • Temperature and humidity: IEC 60068-2-38:2009
  • EMC : EN 55032
  • EMI : IEC 61132, EN 61326, IEC 55024
  • CE Certified
  • Manufacturing: ISO 9001:2008, EN-ISO 13485:2003

In addition, Miami offers:

  • Ruggedized interconnects
  • Completely integrated self-test capabilities
  • On-board, autonomous voltage and current monitoring
  • Programmable voltage supplies for I/O bank
  • Unauthorized cloning protection infrastructure
Florida is a family of carrier-boards for the Miami SOM to guarantee a quick and hassle-free start of system development and prototyping.

Three types of Florida board are available – general purpose, a medical version with ADCs for monitoring purposes, and a plug-in PCIe board version. For further details visit the Florida baseboard for Miami Zynq SoM page.

A “Combination Board” development kit is also available which is a combination of your choice of Miami Zynq SoM module and Florida Carrier Board complete with Dyplo-on-board, touch screen, reference designs (audio, video and medical), individual case and full set of cables. Based on the different versions of Florida, the following development kits are available: Medical Development Kit, Generic Development Kit, PCIe Development Kit.

You can now order development kits via our online shop using the links opposite.

Volume pricing is dependent on spec. and quantity – please use the “Get Quote” link to the right for a quick turnaround pricing estimate. Contact our experienced team with your detailed questions whether technical or commercial – we’ll be happy to help.
