COMExpress Mini type 10 module Apollo Lake

COM Express mini modules with Apollo Lake E3900 series AtomAL9A3 Apollo Lake COM Express Mini Type 10

AL9A3 Type 10 COM  Express industrial temperature production-quality modules

The AL9A3 module family based on the tiny (84 x 55mm) COM Express Mini form-factor are powered by 6th-generation Intel Atom E3900 “Apollo Lake” processors – SoC Atoms with outstanding multimedia performance – including x7-E3950, x5-E3940, x5-E3930 as well as the pin-compatible Pentium N4200 and Celeron N3350. Family devices include both dual and quad core variants with a range of TDP extending from 6W-12W. The E3900 processors are available in full industrial temperature spec. Versions are available with SSD (AL9A3) or eMMC (AL9A2) memory fitted to the board.

The AL9A3 series COM Express boards run Windows 10, including Windows 10 IoT Enterprise in the low-cost “Entry” SKU, as well as Debian 8, CentOS 7, Ubuntu 15.10 and Yocto 2.0 Linux distributions, and also QNX 7.0

4GB or 8GB of onboard 1600MHz single or dual-channel DDR3L RAM is supplied as standard.

The full range of COM Express Type 10 connectivity is supported, which includes 4x PCIe, up to 8 USB 2.0 and 2 USB 3.0 ports, dual display: DDI+LVDS or DDI+eDP, Gigabit Ethernet, dual SATA 3.0, dual UART, up to 8 GPIO, SMBus, I2C, SPI and LPC are supported as well as HD Audio.

A heatsink is required in normal fanless applications, and this can be supplied fitted.

 AL9A3Notes
Microcontrollerx7-E3950, x5-E3940, x5-E3930, N4200, N33506th Generation Apollo Lake, 2/4 core
CPUx86/x64All support 64-bit
Processor Clock MaxUp to 2.5GHzVaries by CPU
RAM (GB)4/8DDR3L-1600 dual channel (single channel for AL9A2)
SSD (GB)4-64GBoptional AL9A3
eMMC (GB)4-64GBoptional AL9A2
UART (RS232/RS485)2
GPIO8
Gb Ethernet1
I2C Interface12x on AL9A2
SMBus1
SPI1
LPC1
USB Host10incl. 2x USB 3.0
AudioyHD Audio
SATA2SATA 3.0
PCIe43x miniPCIe on baseboard
DDI1HDMI/DVI/DP++ to 4K
LVDS/eDP1single channel 24-bit to 1366x768
LPC1
Temperature Range0 to +60C
-40 to +85C
Dimensions84mm x 55mmCOM Express Mini Type 10
QNXy7.0
LinuxyDebian 8
CentOS 7
Ubuntu 15.10
Yocto Project v2.0
AndroidTBA
Windows 10 IoTyEnterprise "Entry" LTSB

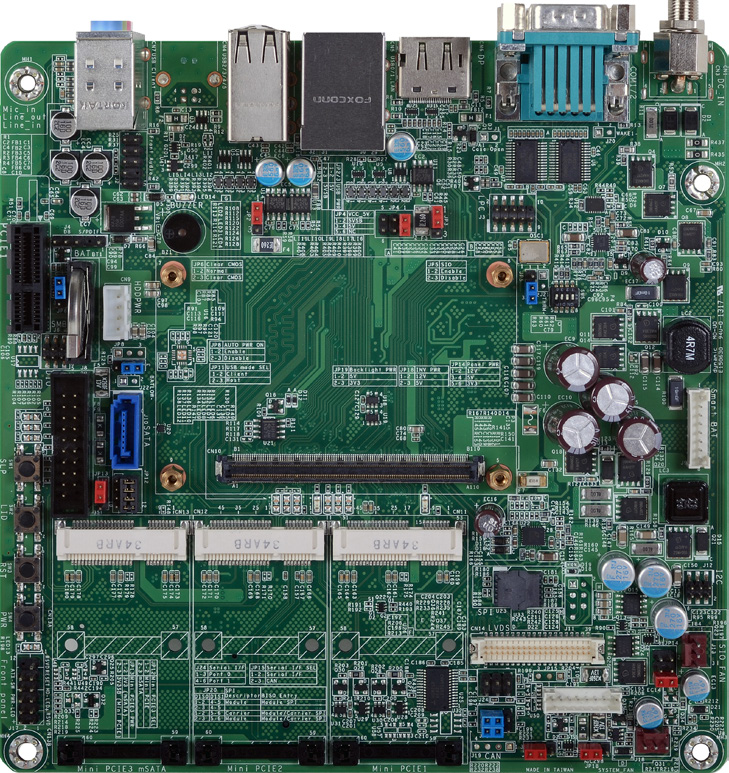

COM Express Carrier Board with 3x miniPCIe for Mini Type 10A mini-ITX (170mm square) standard carrier board is available – COM100-B, and provides a broad range of connectors, including SATA 3.0, 1x PCIe, 4x minePCIe, SIM Card Socket, Audio Codec, 6x USB Connectors, DisplayPort, LVDS, 8-bit GPIO, LPC, SMBus, I2C, 2 Serial ports, Ethernet. We are able to assist customers wishing to incorporate a custom baseboard in their design.

This product is fully available in a number of configurations, including E3930/40 as well as N4200 processors, with 8 and 4GB RAM, in commercial and extended temperature ranges. Please contact us for further details.

For development system and module availability, please contact our team. We look forward to providing you with knowledgeable, professional support to create your product. Please call Direct Insight on +44 1295 768800 9am to 5.30pm UK time, emailing info at directinsight.co.uk, or by using the “Contact Us” form below.

Contact our experienced team with your detailed questions – we’ll be happy to help. Pricing information for spares and small quantities of modules appears on our online shop. However, for quantities of 50 and above, please contact us for the latest price information.
